Ultrasonic Octave Flow Meter

Revolutionary, precise and reliable ultrasonic water meter

Looking to replace a Helix 3000 water meter? Then this could be the water meter you need!

Octave Flow Meters

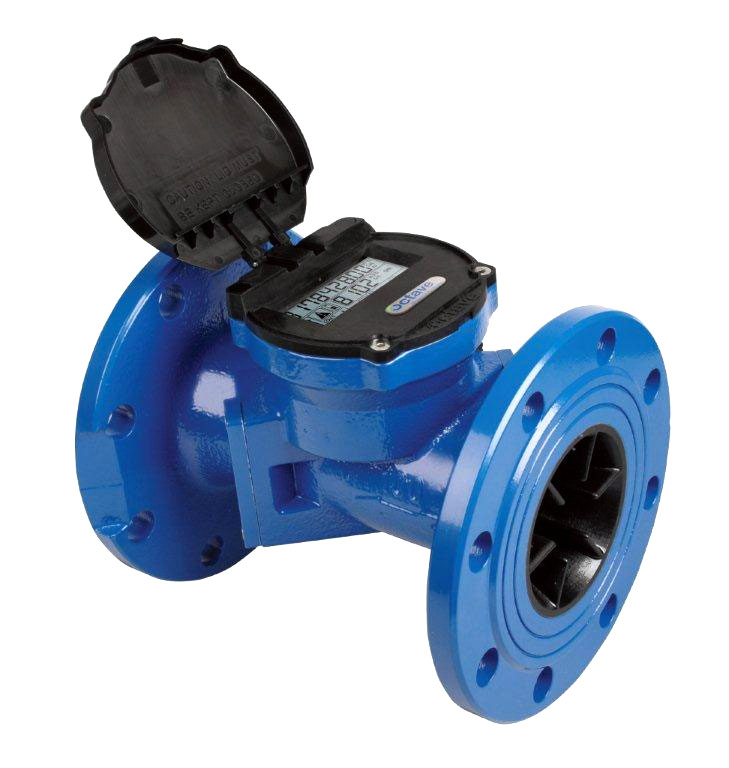

The Octave meter is a revolutionary precise and reliable double bean ultrasonic bulk water meter for use with potable water. The Octave meter is available in sizes ranging from 50mm to 300mm and offers long term stability and reliability.

Key features

  • No moving parts to wear which means low maintenance
  • High accuracy, better than ±2% with a 500:1 turndown from Q3 to Q1
  • Precision class ISO4064 rev.2005
  • Extremely sensitive and accurate at low flows
  • Battery powered, 10 year life expectancy
  • Rugged mechanical design, submersible (IP68)
  • Bi-directional flow measurement
  • 4-20mA (loop powered) and dual pulse (open collector) outputs
Octave Flow Meter

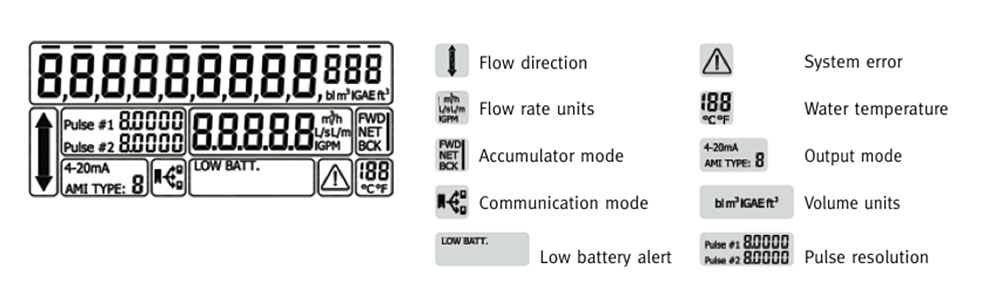

Display

Two line LCD display showing flow rate, totaliser values, flow direction, battery condition, output mode, alarms and leak detection. The Octave meter is AMR ready and can have 3G built in allowing for easy connection to any automated meter reading system.

If you're interested in our Ultrasonic Octave Flow Meter please get in touch on 01453 887449 or sales@mercomwp.co.uk
