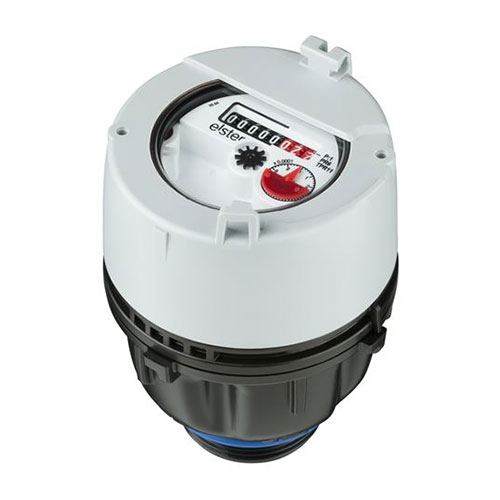

The V210 manifold meter is designed with optimum accuracy and performance for revenue metering.
Request a quoteAvailable in sizes 15mm (polymer body), 20mm and 25mm (both brass body) with flow rates between 6.25 litres/hr to 7.875 m3/hr.
Suitable for installation in flooded chambers (IP68 rated).
R400 flow range (Q3/Q1) for 15mm meter, R315 for 20mm and R160 for 25mm meter.
Meter size (mm) | 15 | 20 | 25 | ||||
---|---|---|---|---|---|---|---|
Meter thread size | Inches | G1½"A | G1½"A | G2"A | |||
Overload flow rate | Q4 ±2% | m3/hr | 3.125 | 5 | 7.875 | ||
Permanent flow rate | Q3 ±2% | m3/hr | 2.5 | 4 | 6.3 | ||
Transitional flow rate | Q2 ±2% | litres/hr | 10 | 20.32 | 63 | ||
Minimum flow rate | Q1 ±5% | litres/hr | 6.25 | 12.7 | 39.375 | ||
Starting flow (approximate) | litres/hr | 1 | 2 | 6 | |||
Output pulse | litres/pulse | 1 | 1 | 1 | |||
Head loss, temperature & pressure | 15mm meter is 1 bar at 3.7 m3/hr, all other meter sizes are less than 0.63 bar at Q3. Maximum water temperature 30°C and maximum pressure 16 bar |
If you're interested in our Honeywell (Elster Metering) V210 please get in touch on 01453 887449 or sales@mercomwp.co.uk
