V100 volumetric cold water meters

15mm to 40mm sizes available from stock

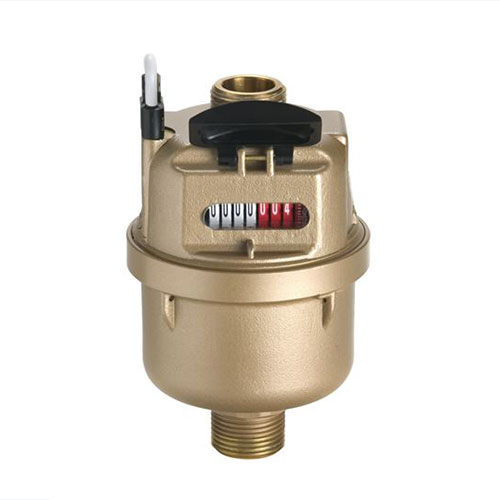

Honeywell (Elster Metering) V100 in-line meter domestic volumetric cold water meter

The V100 (formally (PSM-T meter) is the world's favourite domestic volumetric meter, with over 50 million already in service in over 100 countries.

Request a quote

Available in sizes ranging from 15mm to 40mm with flow rates between 7.5 litres/hr to 20 m3/hr

Optimum accuracy and performance at all times, in any position.

Suitable for installation in flooded chambers (IP68 rated).

Specification

R160 flow range (Q3/Q1) Class C equivalent

Meter size (mm)			15	20	25	30	40
Meter thread size		Inches	G¾"A	G1"A	G1¼"A	G1½"A	G2"A
Overload flow rate	Q₄ ±2%	m3/hr	3.125	5	7.875	12.5	20
Permanent flow rate	Q₃ ±2%	m3/hr	2.5	4	6.3	10	16
Transitional flow rate	Q₂ ±2%	litres/hr	25	40	63	100	160
Minimum flow rate	Q₁ ±5%	litres/hr	15.625	25	39.375	62.5	100
Starting flow (approximate)		litres/hr	2	2	6	12	20
Output pulse		litres/pulse	0.5	0.5	5	5	5
All models	Head loss at Q₃ less than 0.63 bar, maximum water temperature 30°C, maximum pressure 16 bar

If you're interested in our Honeywell (Elster Metering) V100 please get in touch on 01453 887449 or sales@mercomwp.co.uk
