Siemens MAG 1100 W
3mm to 10mm available from stock
Mains powered electromagnetic flowmeter

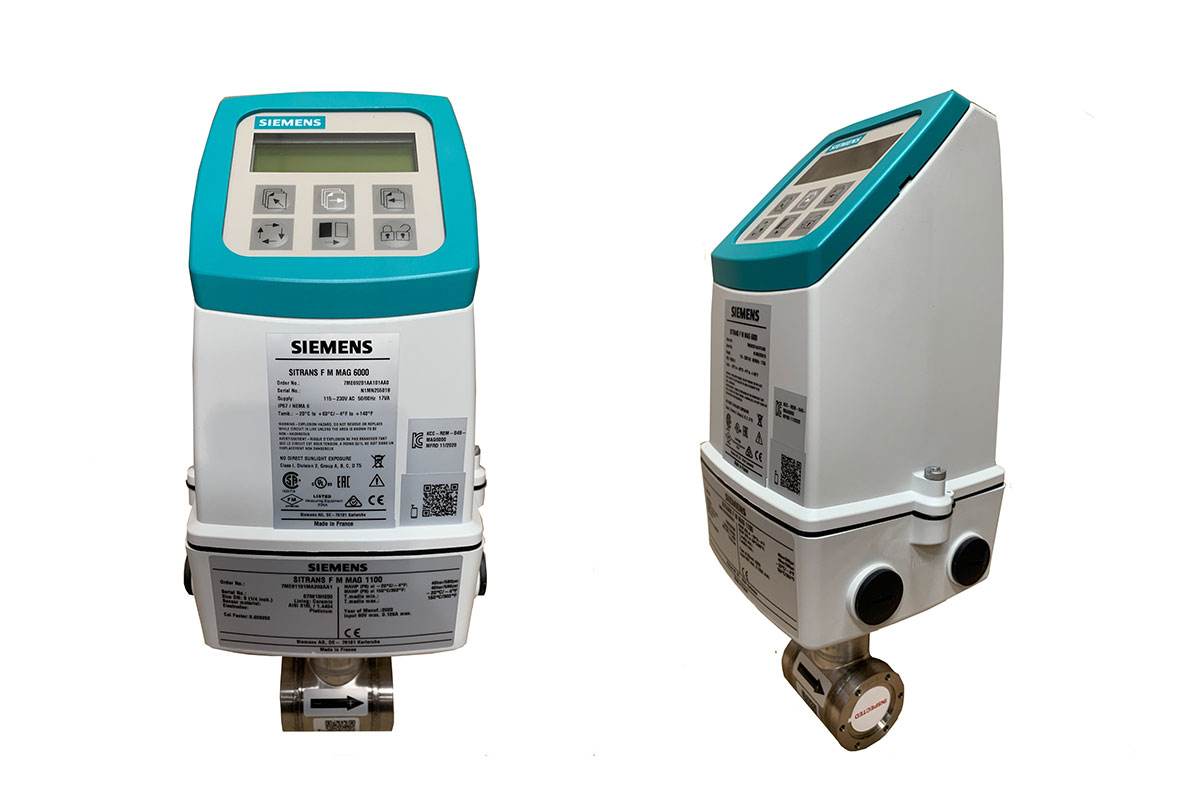

MAG 1100 W is a compact wafer style meter fitted with an integral or remote mounted MAG6000 transmitter and is available in sizes ranging from 2mm up to 100mm. This meter is designed for chemical dosing applications in the water industry where there are pulsating flows, it offers high accuracy, easy operation and reduced maintenance.
Request a quote
- Rugged and robust corrosion resistant AISI 316 stainless steel sensor housing
- Highly resitant ceramic lining and platinum sensing electordes for use with most extreme process media
- High accuracy and repeatability, +/-0.21% of flow rate with the MAG6000 transmitter
- Hoseproof IP67/NEMA 4X enclosure rating
- Fit-and-Flow data storage of all factory and customer settings enables transmitter replacement and commissioning without the need for re-configuration
- Continuous self-checking with alarms ensures both sensor & transmitter accuracy during normal operation
- Comprehensive self-diagnostics allows the meter to monitor both its own operability and the process
- System verification with SITRANS F M Verificator and software verificator
- User configurable operation menus which are password protected
We hold a large stock of Siemens MAG 5100 / MAG 1100 with MAG 6000 transmitter, Siemens MAG 8000 flow meters. Get in touch on 01453 887449 or sales@mercomwp.co.uk
Integral or remote mounted transmitters
MAG6000 transmitter can be supplied mounted either directly onto the sensor or remotely from the sensor. The transmitter offers the following features:
- Back-lit LCD display which can be rotated through 90°, 180° and 270°
- Can be programmed to show any of the following parameters, flow rate, totaliser values, current output reading and % of flow range
- Detailed diagnostics and alarm readings
- Output options include HART (4-20mA), digital pulse/frequency (for forward and reverse flows), relay (alarms), PROFIBUS PA/DP, MODBUS RTU, DeviceNet and Foundation Fieldbus
