Katronic KATflow100

KATflow100
24 Hour DeliveryMeter with transducers for pipe sizes from 50mm to 3000mm available from stock

Standard clamp-on ultrasonic flowmeter

KATflow100 KATflow100 is a compact ultrasonic flow transmitter designed for permanent installation and flow measurement on single pipes. This instrument offers a cost-affective option owing to its simpified specification and the availability of a range of transducer types. The varied functionality and simple operation make it the perfect product for large projects and customer specific solutions.

Request a quote

Key features and Benefits

  • Suitable for use on pipe sizes ranging from 10mm to 3,000mm
  • Can be installed on to pipework with no interuption to the flow, this offers a cost affective solution, especially on larger sized mains
  • Robust IP66 die-cast aluminium flowmeter enclosure
  • Low cost of ownership with LCD display and 5 key keypad showing flow rate and bi-directional flow totaliser function
  • Output options include current (typically 4-20mA), digital open collector, digital relay, voltage and frequency
  • Up to 4 output options available for for 4-20mA, digital open-collector, digital relay, voltage, frequency and Hart compatability
  • Optional transducer mounting accessories to best suit the users requirements
  • The transducers can be supplied suitable for submersion in water if required (IP68 rated)

Next Day Delivery on Katronic Flow Meters

For more information, please get in touch on 01453 887449 or sales@mercomwp.co.uk

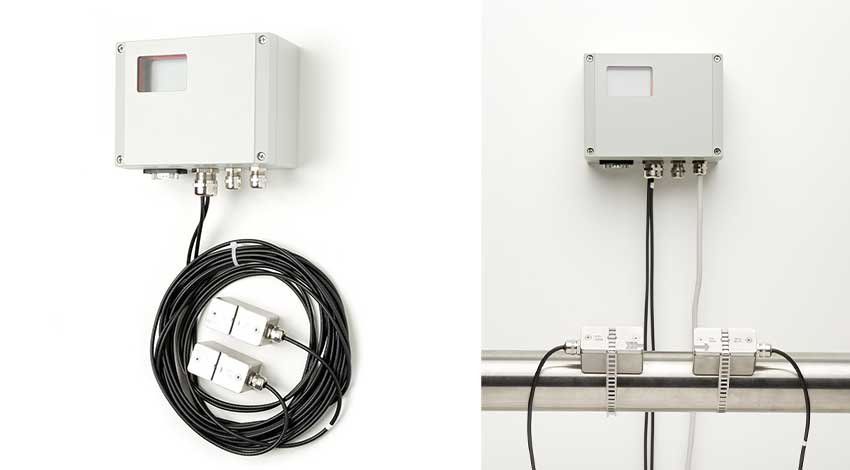

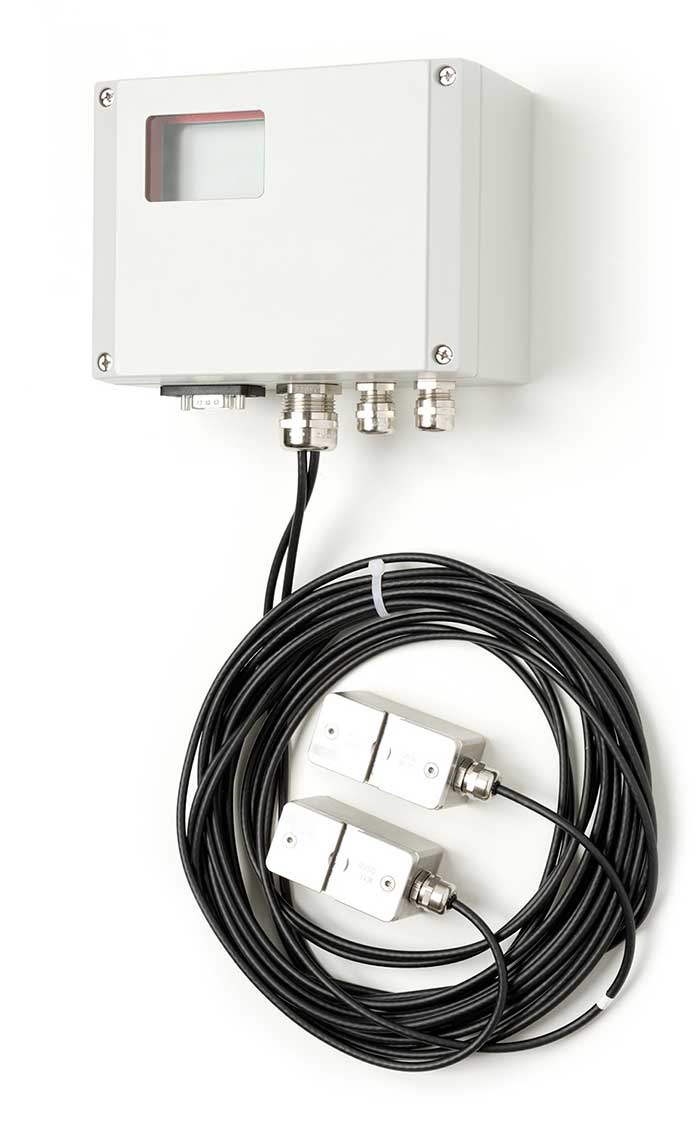

Katronic Flow Meters KATflow100

Display unit

The transmitter can be installed up to 105 metres from the sensing transducers. The transmitter offers the following features:

If you're interested in our Katronic Flow Meters please get in touch on 01453 887449 or sales@mercomwp.co.uk
