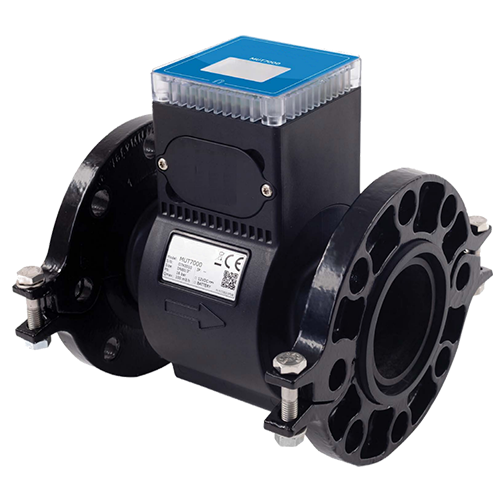

Bermad Series 7000

Bermad 7000
24 Hour DeliveryDN50, DN80 & DN100 available from STOCK

Battery Powered, Compact, Low Cost Electro Mag

Low Cost, Simple, Compact, Electromagnetic flowmeter. No moving parts, No striaght pipe, No pulse unit required. The Series 7000 is the perfect Mechanical Meter upgrade.

Request a quote

Key features and benefits

  • Reduced Bore: Perfect for picking up low nightline usage
    The Reduction means there is no need for striaght pipe before or after the meter
  • PN16 Flanged, with clamp on flanges that can rotate to ensure correct orientation of meter
  • Battery life of between 5-10 years, replacebale internal pack
  • IP68, can live under water (max 1.5m)
  • FREE Bluetooth APP for Andriod & Apple users for programming/set up
  • Highly Accurate - ± 0,2%
  • Bi-Directional
  • Bluetooth connection meaning no need to lift heavy chamber covers & no requirment for street works
  • In-Built Data Logger
  • WRAS Approval
  • Empty pipe detection on measuring electrodes standard.

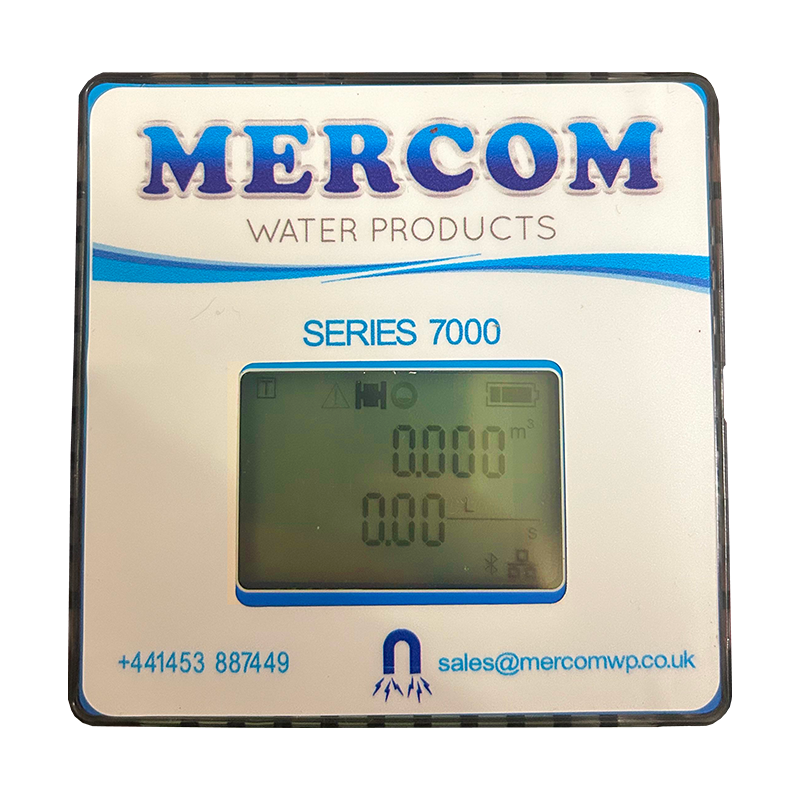

7000 Display

7000 display

Clear Back Lit LCD Showing totaliser & flow rate. Via the mobile APP, you can customise the display to show your required flow settings (l/s or m3/h etc.) plus edit the decimal places and pulse rate.

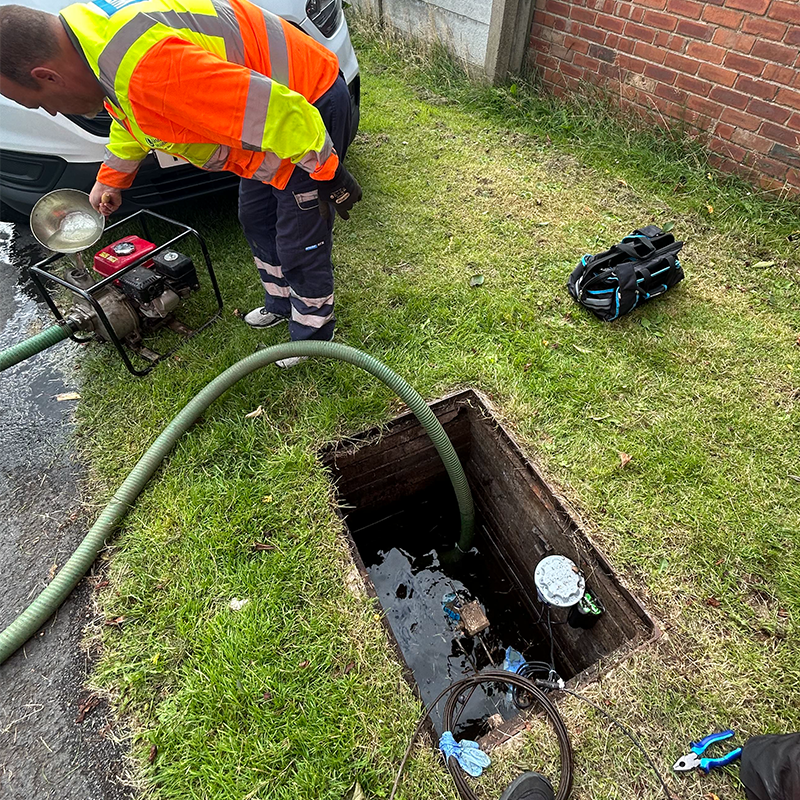

User Friendly

Bluetooth connectivity meaning no reason to lift heavy chamber covers which is great for health and safety plus time efficient + operatives do not need to work in the road or pump out flooded chambers.

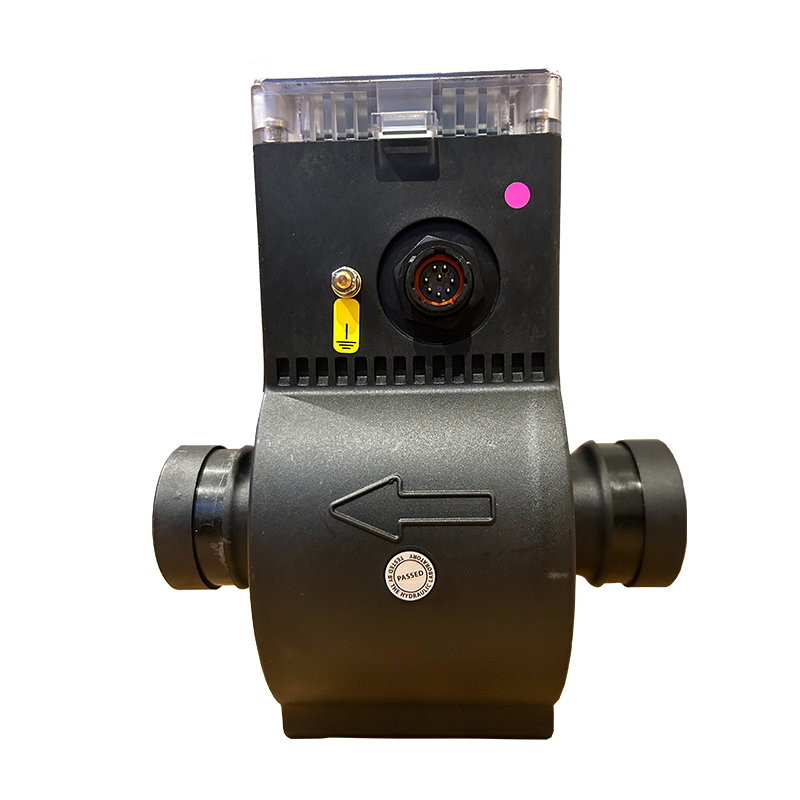

Pulse Output

Pulse unit

Pulse Output via Mil-Spec connector as shown above.

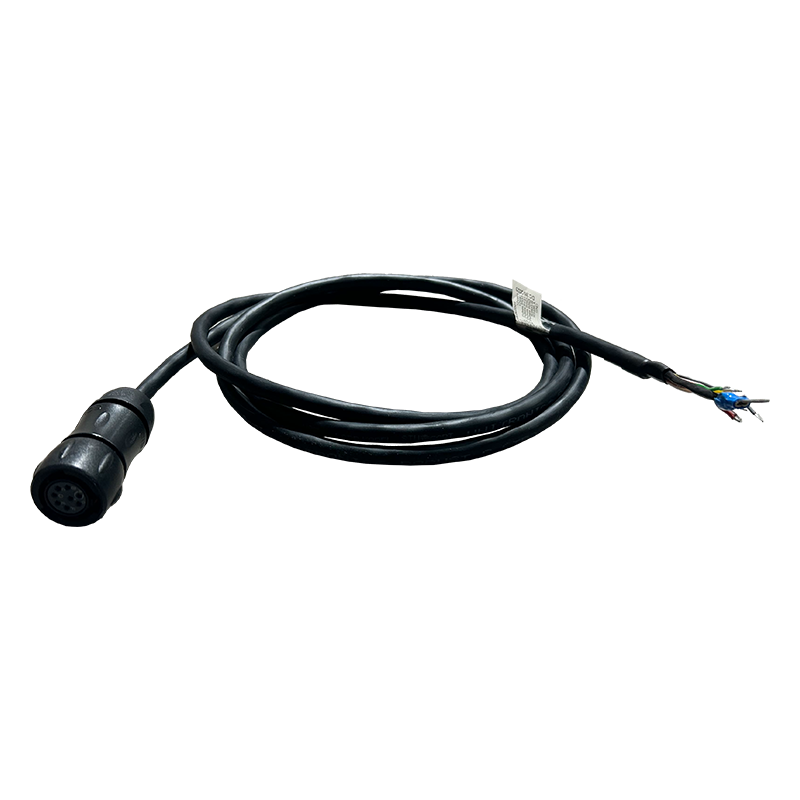

Pulse Output Cable

Pulse unit cable

Pulse Output Cable, 2m as standard. Can be supplied with bare ends or fitted with a data logger manufactures connector.

Series 7000 vs Mechanical Meters

Series 7000 Mechanical Meters
Accuracy 0.2% 2%
Stable Calibration Yes No (Under reads due to wear)
Flow Rate & Totaliser Yes Total only
Straight Pipe No Yes
Affected by Particles No Yes
Pulse Unit to Replace No Yes
Phone App/Display Yes No

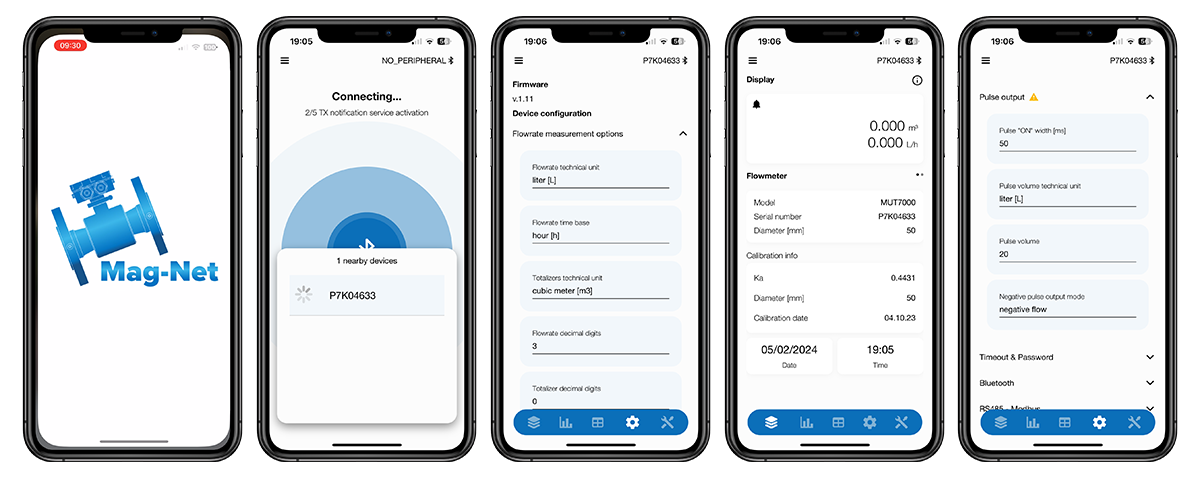

Mobile App

The SERIES 7000 is programmed via a mobile APP called Mag-Net. Mag-Net is available for both APPLE & Andriod users as it uses Bluetooth for connection, the app can be downloaded from both app stores.

Mobile App

A nice feature of using bluetooth to communicate is the distance of which you need to be from the physical asset. If the sensor and transmitter are installed in the middle of a road, you can pull up next to the chamber, and connect to the unit from the comfort of your vehicle.

The app shows the live flow rate, totaliser, settings & more, there really is no need to see the physcal display. Best of all, it's a FREE download with no hidden/extra charges to pay.

If you're interested in Bermad Series 7000 meter please get in touch on 01453 887449 or sales@mercomwp.co.uk
